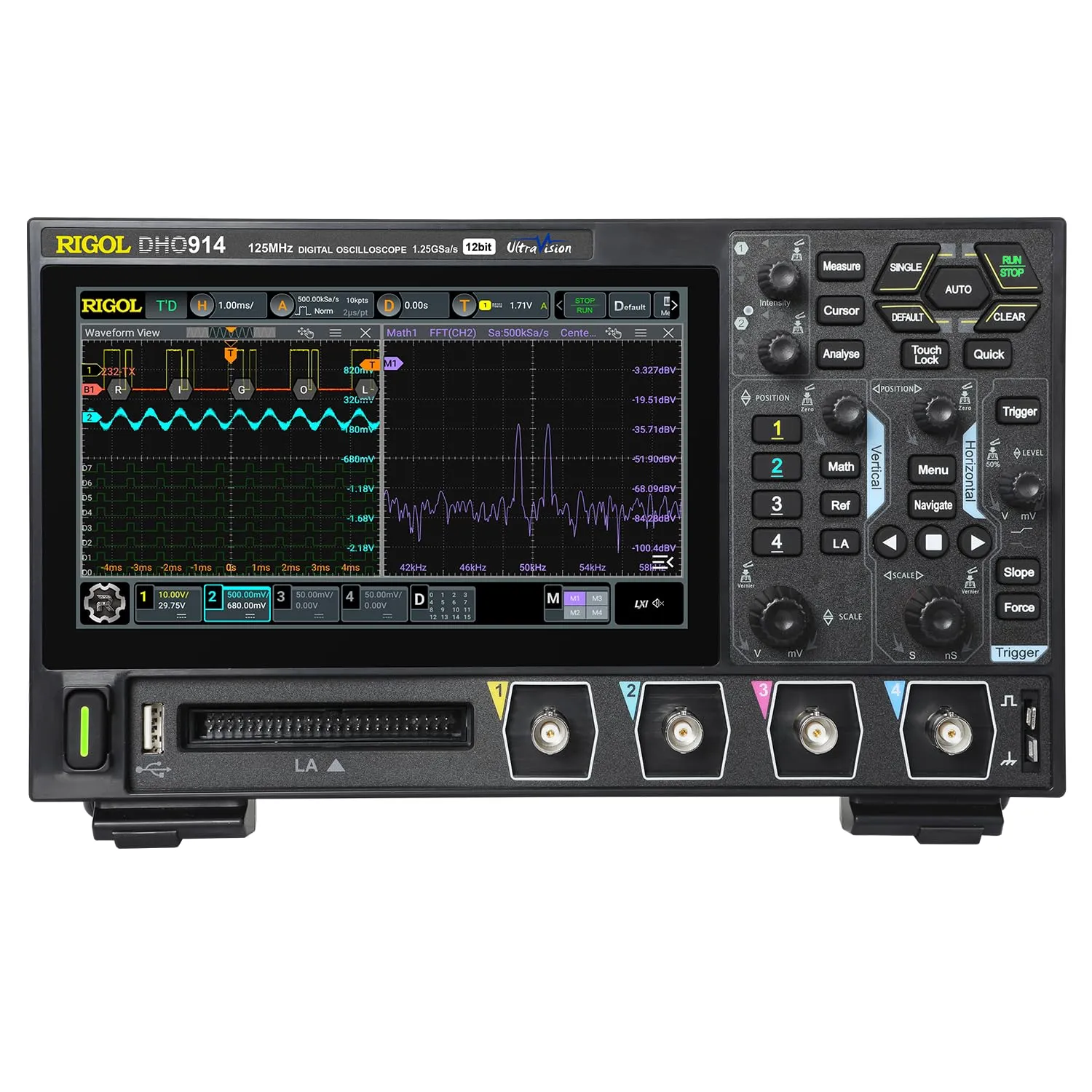

- Ultra-low background noise makes the signal more pure, and can capture small signals without missing. Provides 12-bit hardware high resolution for all series. Up to 125MHz analog bandwidth and 4 analog channels. Equipped with 16 digital channels (optional), real-time sampling rates up to 1.25 GSa/s Storage depth up to 50 Mpts Vertical sensitivity range of 200 μV/div to 10 V/div Ultra Aqua mode provides up to 1 million wfms/s waveform capture rate
- Supports gray scale digital real-time brightness function on the 256 floor. It integrates a variety of functions including arbitrary waveform/function generator, birdon plot analysis, histogram, digital signal analysis, and many more in one. Supports waveform search and navigation function to quickly identify signal abnormalities. Equipped with a 7-inch 1024 x 600 high-definition touch screen.
- New Flex knob provides a more user friendly operating experience. All models come standard with USB Device&Host, LAN, and HDMI ports. Support online version upgrade function
- The main body of RIGOL equipment provides a 3 year standard warranty. Product Weight: 3.9 lbs (1.78 kg). Dimensions: 10.5 x 6.4 x 3.0 inches (265.36 x 161.75 x 77.38 mm)
- Accessories: Power cable, USB cable, ground wire, probe x 4
