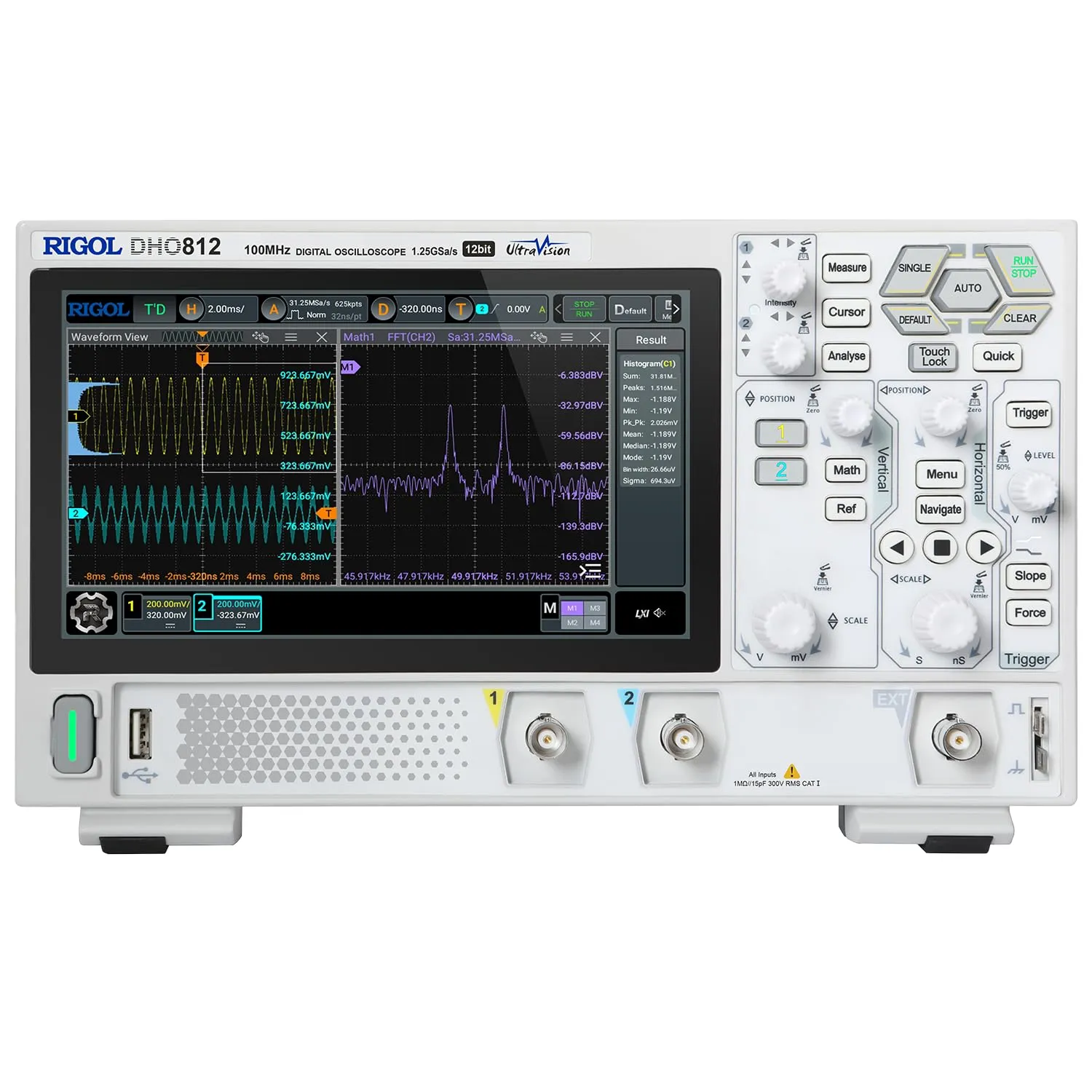

- Ultra low background noise ensures a purer signal, without missing any small signals. It provides 12-bit hardware high resolution for all series, with up to 100 MHz analog bandwidth and support for up to 2 analog channels. Dual channel models come standard with external trigger ports.
- The device offers up to 1.25 GSa/s real-time sampling rates and a storage depth of up to 25 Mpts. The vertical sensitivity range ranges from 500 μV/div to 10 V/div. The Ultra Aqua mode provides a waveform capture rate of up to 1 million wfms/s.
- It supports grayscale digital real-time brightness function with 256 levels. Additionally, it supports waveform search and navigation functions for quickly identifying signal abnormalities. The device features a 7-inch 1024 * 600 high-definition touchscreen. The new Flex knob provides a more user-friendly interactive experience.
- All models come standard with USB Device & Host, LAN, and HDMI ports. The new design offers convenient maneuverability and supports online version upgrades.
- The main body of RIGOL equipment comes with a 3-year standard warranty. The product weighs 3.9 lbs (1.78 kg) and has dimensions of 10.5 x 6.4 x 3.0 inches (265.36 x 161.75 x 77.38 mm). Accessories included: Power cable, USB cable, ground wire, and two probes.
