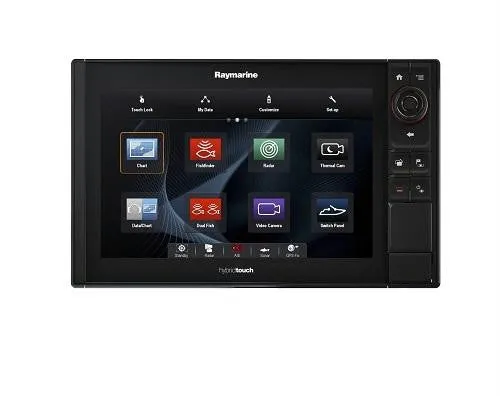

Raymarine ES128 12.1"" MFD

WiFi, CHIRP Downvision, Lighthouse USA Vector

• Super bright displays (1250 nits) with optical bonding technology for sharper colors and contrast
• HybridTouch™ - Responsive touch screen control with pinch to zoom or simple keypad interaction using the new multifunction rotary control and keypad
• Sleek glass bridge design with three mounting options. Bracket, surface, or fully recessed flush mounting
• Powered by Raymarine’s powerful LightHouse II operating system. Easy-to-use, easy-to customize, and easy-to-expand. Network eS Series with any LightHouse II powered display
• Engineered for the future with regular LightHouse updates and enhancements.
• Access your eS Series from anywhere on board. Built in Wi-Fi allows you to stream to Raymarine mobile apps and sync with the Navionics Boating app.
• Fast 10 Hz GPS/GLONASS internal receiver for rapid chart position updates and faster satellite acquisition
• High performance side scanning sonar using the optional CP200 CHIRP SideVision™ sonar
• Sonar Command Center - view up to 4 independent sonar channels simultaneously, including the CP370 Digital and CP470 and CP570 CHIRP Sonars
• Monitor and record onboard video with support for up to 10 video over IP cameras like the Raymarine CAM200IP
• Network with Raymarine Digital, HD Color and Super HD Color radar systems
• Best-in-class automatic Bird Mode for finding flocks of birds above schools of fish (HD radar only)
• Navigate safer at night with optional thermal night vision cameras and slew-to-cue target tracking
• Engage and control Raymarine Evolution autopilots directly from the eS Series chartplotter display.
• Built-in CHIRP Sonar Downvision

Display
Sleek glass bridge design with three mounting options. Bracket, surface or fully recessed flush mounting. Super bright displays (1250 nits) with optical bonding technology for sharper colors and contrast HybridTouch™ - Responsive touch screen control with pinch to zoom or simple keypad interaction using the multifunction rotary control and keypad

Navigation
Freedom to choose the very best charts from C-MAP by Jeppesen, Navionics, and Raymarine’s expanding LightHouse chart catalog Support for Navionics Sonar Charts and Community edits Sync charts, waypoint and routes between your mobile device and MFD with Navionics Boating App Navionics Auto Routing using Navionics or Navionics Platinum charts Jeppesen Easy Routing using C-MAP 4D MAX charts Fast 10 Hz GPS/GLONASS internal receiver for rapid chart position updates and faster satellite acquisition

Sonar
High performance CHIRP SideVision™ compatible with optional CP200 Advanced CP370 1kW Digital sonar option for blue water fishing Offshore ready using optional CP470 and CP570 CHIRP sonar modules Sonar Command Center - view up to 4 independent sonar channels simultaneously Built-in CHIRP Sonar Downvision

Video
Monitor onboard video with support for up to 10 video of IP cameras and one analog camera View up to 4 cameras simultaneously Record and take snap shots of digital video streams

LightHouse II Software
Network with Raymarine Digital, HD Color and Super HD Color radar systems Raymarine’s advanced HD Color signal processing with 256 color target discrimination Best-in-class automatic Bird Mode for finding flocks of birds above schools of fish (HD radar only) Dual range mode and dual radar scanner (HD radar only) High speed 48rpm scanning (HD radar only)

Thermal Night Vision
Stay safe with superior FLIR thermal night vision technology Easy-to-use. As simple as watching and controlling your TV Avoid obstacles, such as rocks, floating logs, and other debris Quickly identify overboard people and pets Slew-to-cue improves situational awareness and safety. Thermal camera automatically keeps ""cued"" targets in view at all times.

Evolution Autopilot
Engage and control Raymarine Evolution autopilots directly from the eS Series chartplotter display Follow waypoints and routes with unmatched precision using Evolution’s aerospace derived 9-axis sensor technology Add a p70 or p70R pilot control head for remote control and advanced features

Engine Integration
Complete monitoring of engines, generators, batteries and more NMEA 2000 compatible ECI-100 Universal Connectivity for Yanmar, Yamaha, Honda and more

Digital Switching
Control lighting, climate, navigation components, wipers, entertainment, security and much more State-of-the-art digital power distribution

Weather
Stay ahead of the front with graphical weather overlays and weather reports from SIRIUSXM (USA only)

Networking
Network compatible with any LightHouse II powered multifunction display Ethernet - 1 RayNet ports NMEA2000/SeaTalkng Port for NMEA2000 and SeaTalkng connections NMEA0183 Input/Output Wi-Fi for mobile app integration Bluetooth for remote and MP3 control Fusion Stereo control

Remote Control Options
RayControl Mobile App for iOS and Androids RMK-9 Wired Remote Keypad RCU-3 Bluetooth Wireless Remote

• Display
• Power Cable - STR 1.5M (R62379)
• Protective cap for power cable
• RayNet to RayNet - 2m (A62361)
• STNG Spur - 1m (A06039)
• STNG to DeviceNet Dongle (A06078)
• Suncover (R70386)
• Trim Kit / Keypad Cover (R70387)
• Gasket (R70388)
• Mounting hardware
• Surface Mount template
• Quick Start Guide
• Lighthouse NOAA Vector Charts
