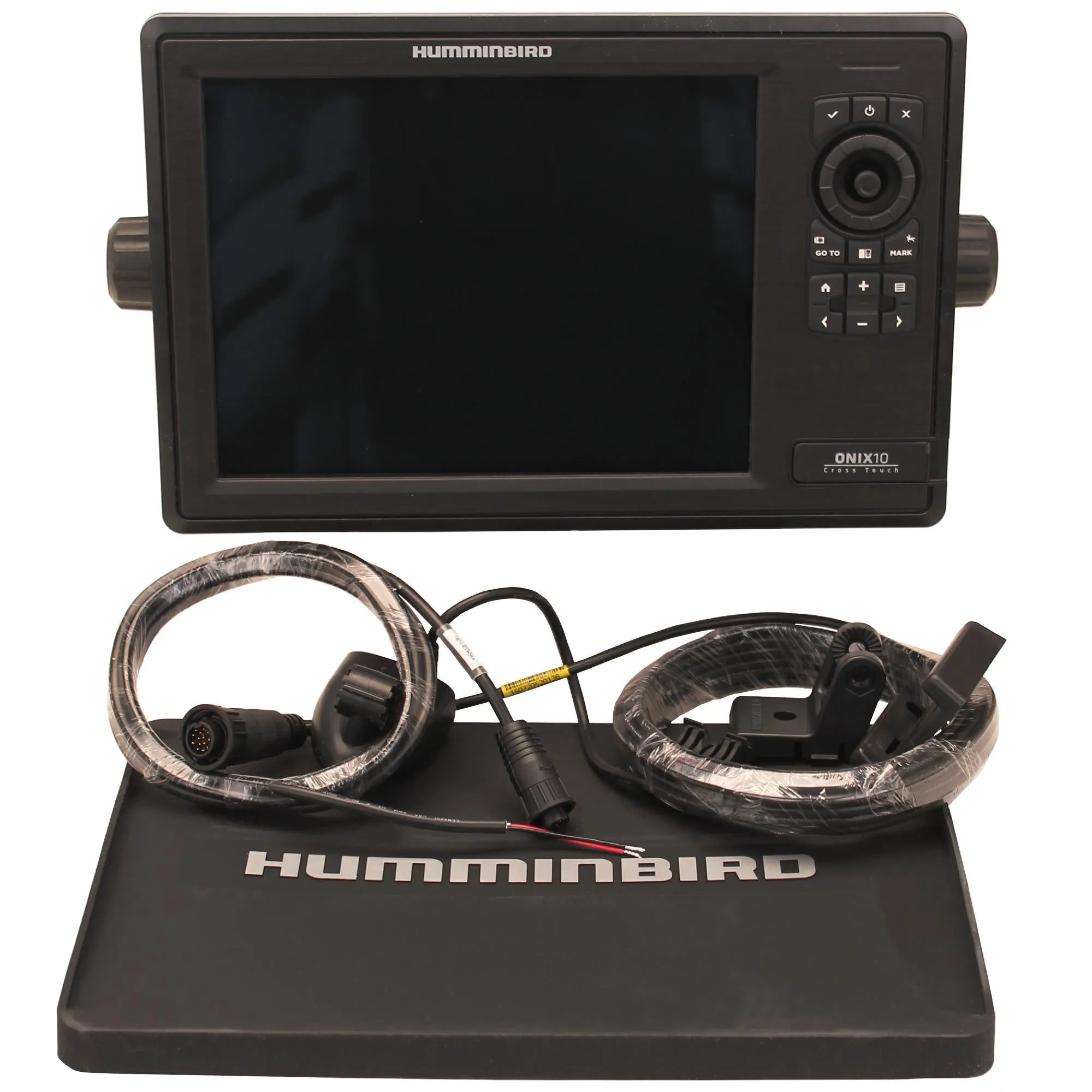

The Onix 10ci CT Combo features a large 10.4" display with LED backlight. It has DSP (Digital Signal Processing) DualBeam Plus sonar with SwitchFire with up to 8000 Watts PTP power output. GPS Chartplotting with Humminbird TriFuel that gives you access to world background maps from Navionics, Cmap and Humminbird LakeMaster. Includes unit cover. Maximize your angling experience with the Humminbird Onix10ci CT Combo.
Additional Notes:
- To use an external GPS receiver (AS GRP or AS GPS HS) an AS GPS NMEA is required - Optional 50 kHz transducers available for extreme deepwater use* - To obtain 1000 watts, optional deepwater transducer required - Optional SM3000 available for deepwater use to 10,000 ft., requires optional purchase of Chirp Ethernet Sonar module**
Features:
- Broadband Chirp Sonar - Xtreme Depth - Digital Signal Processing - 360 Imaging - SwitchFire - DualBeam Plus Sonar - Internal GPS - TriFuel Cartography - Upgradeable Software - Dual Card Slots - High Definition Display - Ethernet - HD Radar - AIS - AutoPilot - Camera - NMEA - I-Pilot Link - AutoChart Live - Cross Touch - SmartStrike - NMEA 2000 - Fusion - Precision GPS
Specifications:
- Display Size - Diagonal: 10.4" - Display Pixel Matrix: 1024H x 768V - Display Type: Color TFT - Display Colors Grayscale: 16.7 mm Colors - Sonar Standard: DualBeam Plus/Digital Sonar Processing (DSP) - Standard Sonar Coverage: 20e & 60e at -10db - Standard Sonar Frequency: 200/83/50* kHz - Sonar Optional: SM3000** - Target Separation: 2.5" - Power Output RMS: 1000 Watts* - Power Output Peak to Peak: 8000 Watts* - Depth Capability: 1500, 5000* & 10,000** - Temperature: Built In Transducer - Speed: GPS Speed Included - Backlight: LED - Unit Size - Gimbal Mount: 14" W x 9" H x 4" D - Unit Size - Indash Mount: 12.25" W x 8" H x 4" D - Mounting Options: Gimbal or Optional In-Dash Mounting Kit - Transducer Standard: XNT 14 20 T - Transducer Mounting: Transom - Power Input: 10-20 VDC - Power Draw: 2.5 Amps - GPS Receiver: Included - GPS Tracking: Included - GPS Chartplotting: Included - Waypoints, Routes, Tracks/Points: 5,000, 200, 50/20,000 - Humminbird Mapping: Optional - Navionics Gold/HotMaps: Optional - Navionics Platinum : Optional - Platinum Capable: Optional - C-Map 4D: Optional - 360 Imaging: Optional - i-Pilot Link: Optional - HD Radar: Optional - NMEA 2000: Included - 5 Port Expansion Module: Optional - WeatherSense: Not Supported - Precision GPS: Included - Heading Sensor GPS: Optional - PC Connect: Not Supported - External GPS Receiver: Optional - AS Interlink: Not Supported - AIS Compatibility: Optional - SwitchFire Sonar: Included - Screen Snap Shot: Included - Sonar Recording: Included - Upgradeable Internal Software: Included - Split Screen Zoom: Included - Split Screen Bottom Lock: Included - 3D Chart View: Included - Large Digits View: Not Supported - Wide/Narrow Cone Split Screen: Included - Custom View Selections: Included - Custom Digital Readout: Included - View Preset Keys: Not Supported - Temperature Graph: Included - Temperature Alarm: Included - Freeze Frame: Included - Instant Image Update: Included - Mark Structure on Sonar: Included - Selective Fish ID : Included - Real Time Sonar: Included - Triplog: Included - X-Press Menu System: Included - Card Reader Available: Yes - # Card Slots: 2
