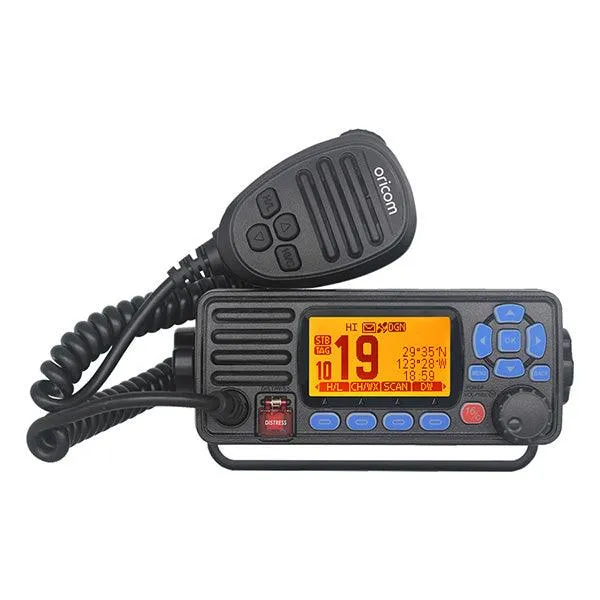

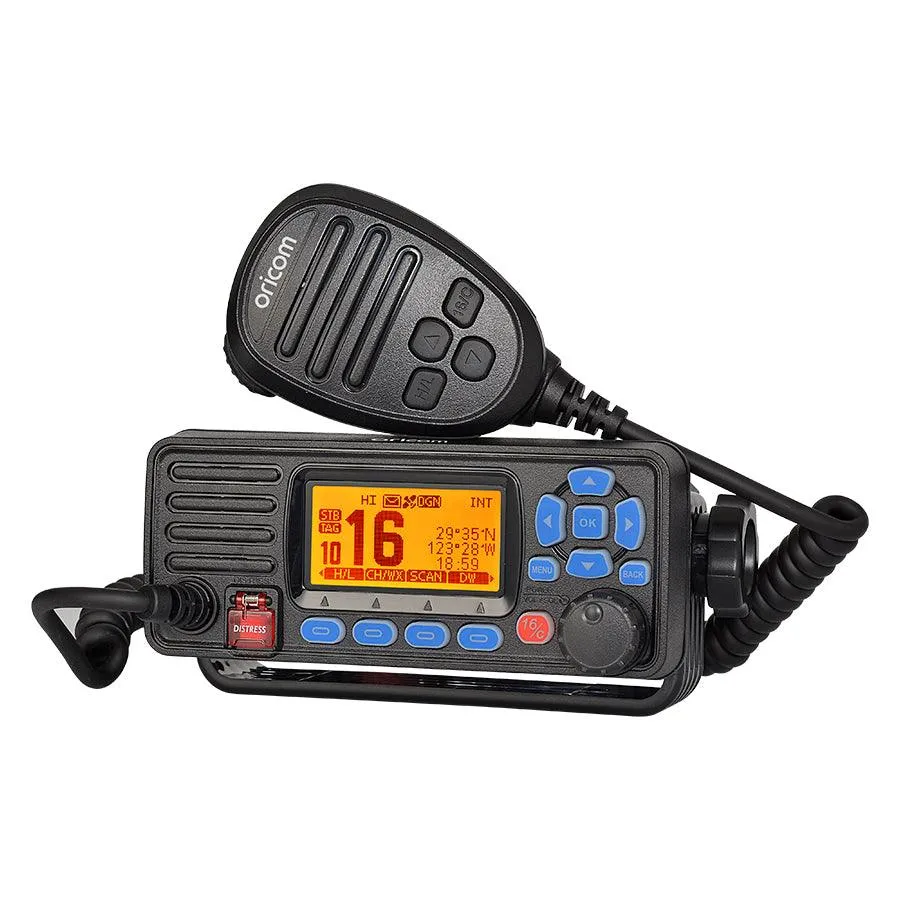

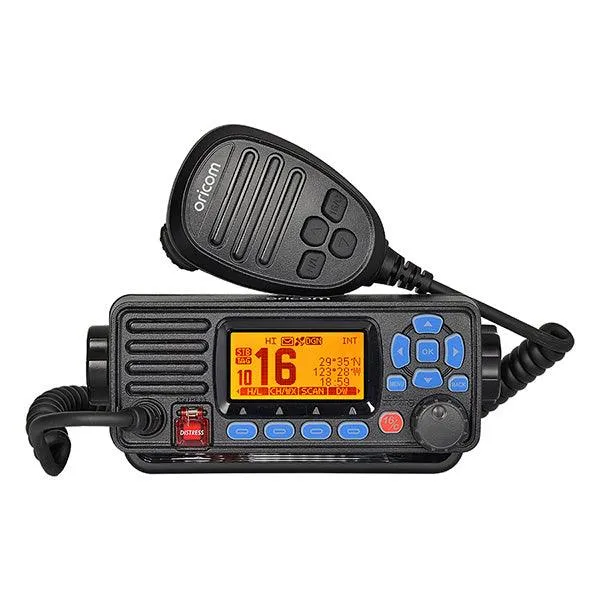

The Oricom MX1100G high-performance VHF Marine Radio is an essential communication and safety device when on the water, including built-in GPS receiving module.
Rated to IPX7 and including Class B Digital Selective Calling (DSC), this radio is ideal for your boating lifestyle, whether you heading offshore or sailing the inland waters.
Built-in Class B DSC
The MX1100G complies with national regulations and combined with practical use, is a versatile Class B VHF DSC marine radio, as it has a dedicated DSC receiving channel. The Digital Selective Calling (DSC) feature on your MX1100G Marine VHF radio uses an arranged digital data message, instead of voice, in order to transmit urgent or important information to another radio. DSC is designed to alert all other DSC-enabled VHF radios within a predetermined range to a distress message, even if the vessel’s listening watch is not being maintained, as this increases the chance of the signal being heard.
GPS Receiver Built-in
A built-in GPS receiver pinpoints the geographic location of your radio anywhere in the world. Being equipped with GPS means that the DSC signal will also contain the location of the vessel. Make sure that the GPS antenna is installed in an open, unobstructed position so that the satellite signal can be received well.
KEY FEATURES:
- 25/1 Watt Switchable transmit power
- Class B Digital Selective Calling (DSC)
- IPX7 Waterproof construction (1 meter depth of water for 30mins)
- Front facing speaker
- Vibration water draining function on transceiver speaker
- Large easy to read LCD display
- Built-in GPS receiver
- Normal scan and priority scan modes
- Scan resume timer
- Rotary volume and squelch control
- Microphone lock function
- Adjustable LCD and key backlight
- Dual/Tri channel watch
- Beep tone On/Off
- DSC Distress, individual, group, all ships, position request, position report
- Channels – All International, USA, and Canadian marine channels
- Dimensions of transceiver: 155mm x 68mm x 86mm
- 2 Year warranty
PACK INCLUDES:

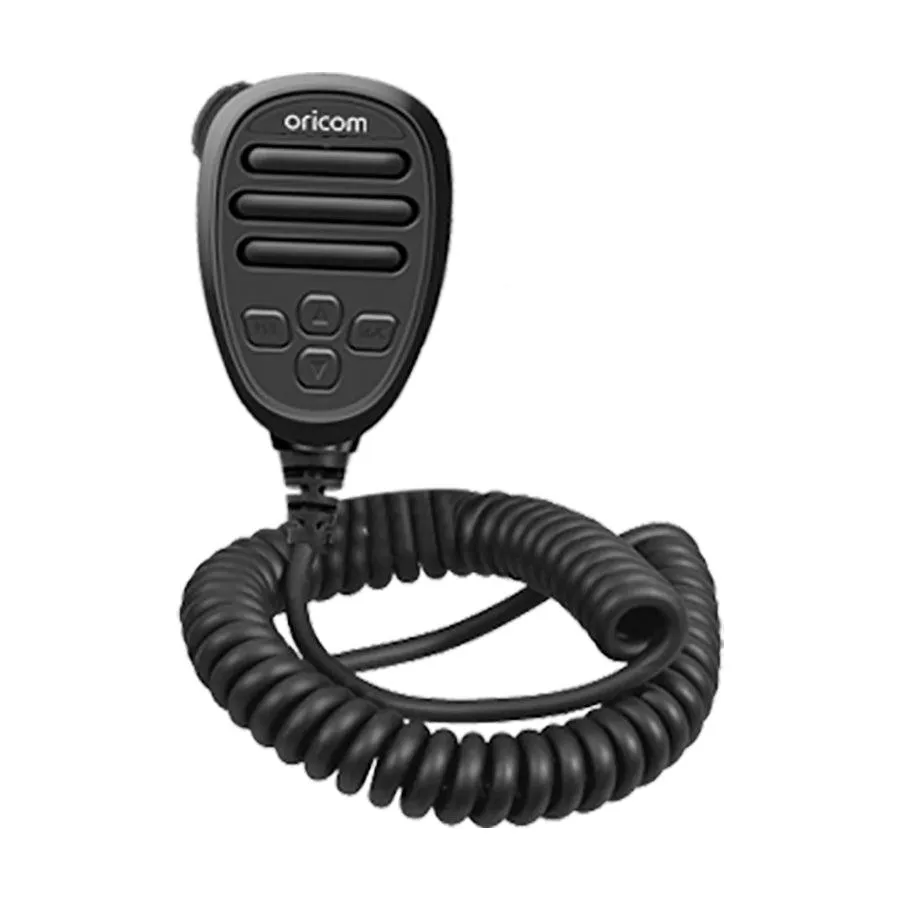

- VHF Marine Transceiver and microphone

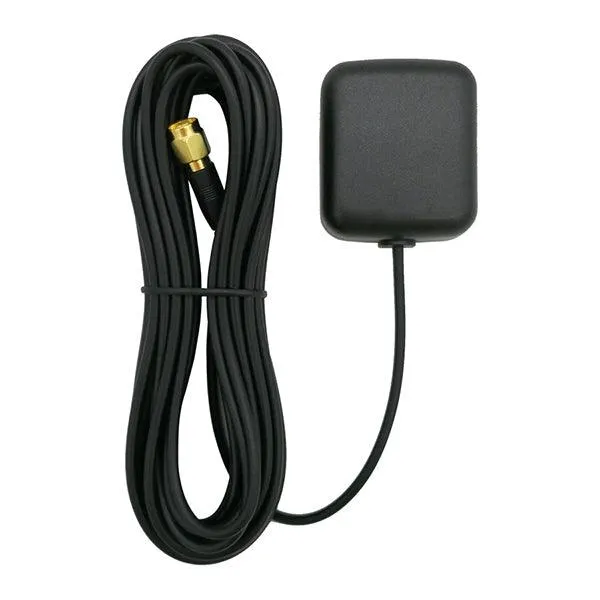

- GPS Antenna

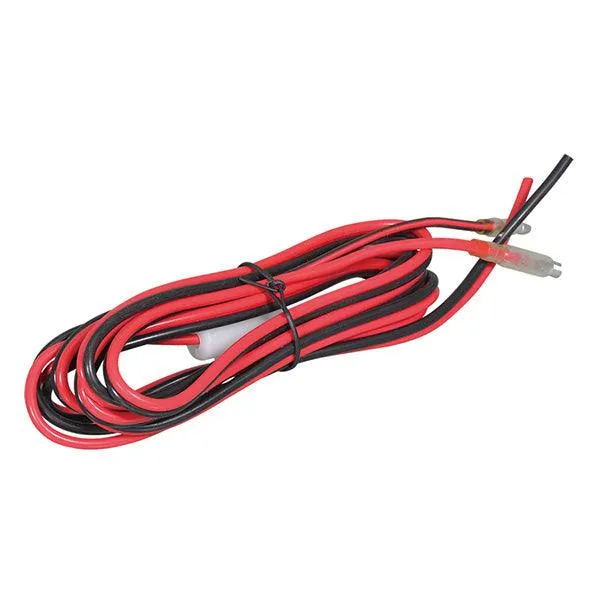

- DC Power Cable
- Fuse

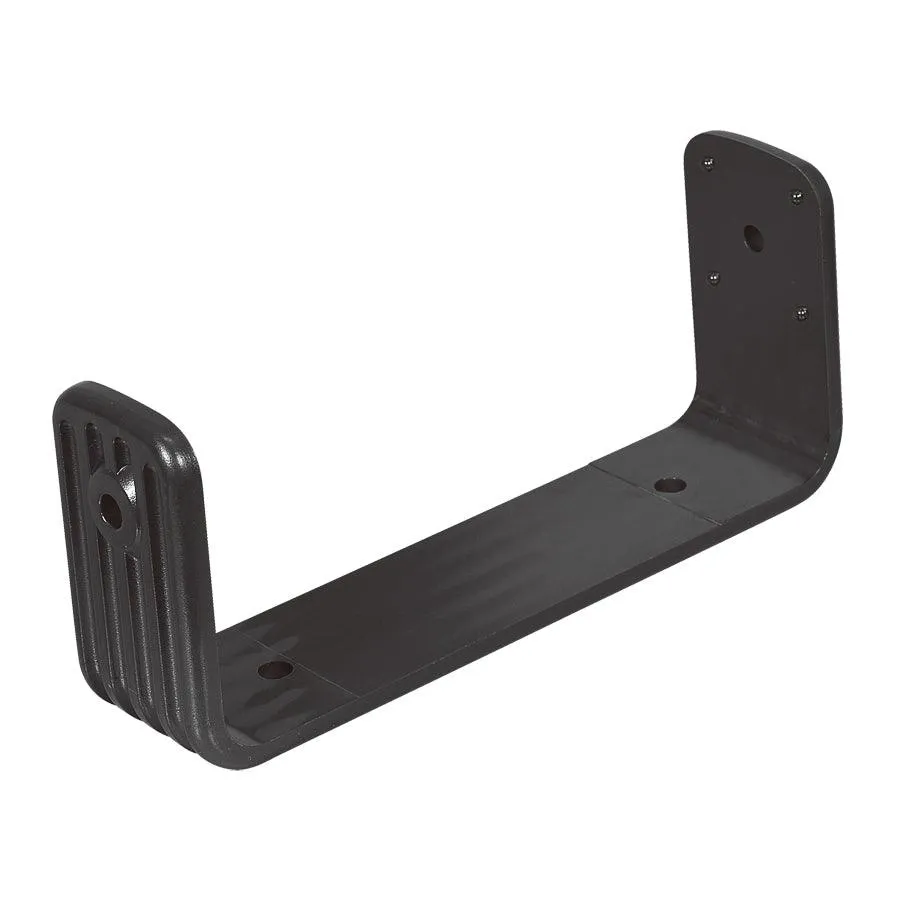

- Mounting bracket
- Screws for a mounting bracket
- Microphone hanger
Download MX1100G Spec Sheet
Download User Guide
MX1100G Cut Out Template
