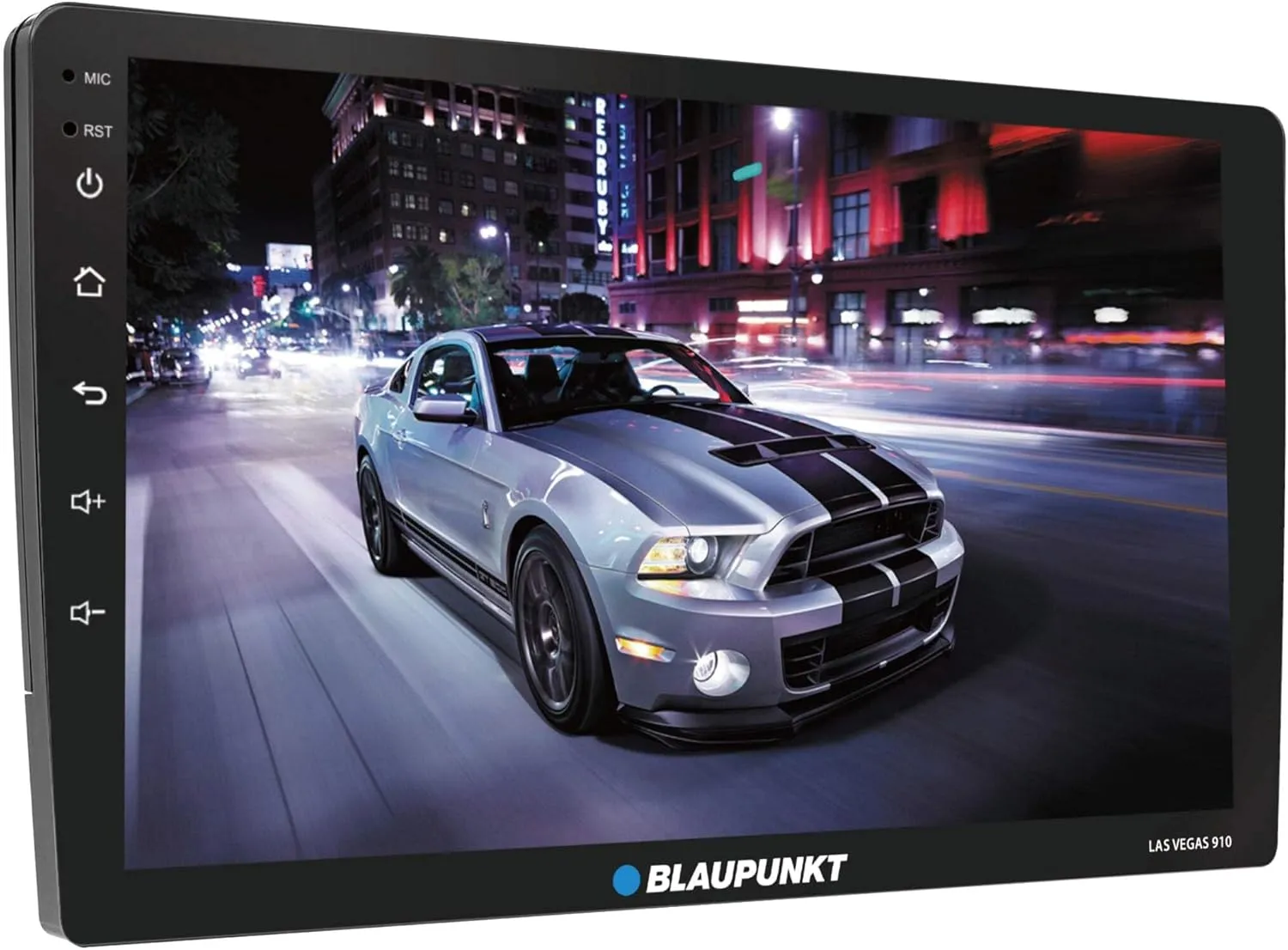

- HIGHLIGHTS || RADIO : High-End Tuner | FM (RDS), AM Tuner || NAVIGATION : Prepared for Navigation Built-in GPS || DISPLAY : Extra Large 10.1-inch QLED 2.5D Touch Screen Panel (1280 x 720 pixels) || CARPLAY / ANDROID AUTO : Wireless / Wired Connection || DATA CARRIER : 2x Rear USB (Standard A-Type) || MULTI PLAYER : Audio and Video from USB || BLUETOOTH : Built-in Bluetooth for hands-free calling | phonebook upload and audio streaming ||
- INPUTS / OUTPUTS : Front A/V input | Rear view camera input | Steering Wheel Control Input || EQUALIZER / AMPLIFIER : DSP with 32 band EQ | 4.1 Channel Pre-Outs | SubPreout | 4x45 Watt Max. Power || WiFi / INTERNET ACCESS : WiFi Built-in || NAVIGATION : Navi-ready : GPS Built-In || ANDROID SMARTPHONE CONNECTION : Type : USB and Wireless (Android Auto) || OIS (APPLE) SMARTPHONE CONNECTION : Type : USB and Wireless (CarPlay) ||
- MULTI PLAYER : Video Playback formats : AVI,MP4,WMV,MKV | Picture Playback formats : JPEG,JPG,BMP,PNG | Audio formats USB : MP3,WMA,WAV | MP3 Title Display : ID3-tag (version 1&2), file/folder names | MP3 Folder/File Browsing : Yes (w/o track interruption) | Mix : Yes (all, folder) | Repeat : Yes (all, folder, track) | Fast Forward/Fast Rewind : Yes (via progress bar) | Number of Files : Up to 10.000 | Bit Rate MP3 : 32-320 kBit/s | Bit Rate WMA : 32-192 kBit/s | Variable Bit Rates : Yes ||
- BLUETOOTH : Supported Version : Bluetooth 4.1 | Supported Profiles : HFP, PBAP, A2DP | Audio Streaming : Yes | Pairing (number of devices) : 5 | Pairing Code : 0000 (default, changeable) | Hands-free Calling : Via Mic Radio Speakers | Microphone : 2 (Built-In External Rear Input) | Key Functions : Accept / Hang Up / Reject Call | Phonebook Access : Yes (Up to 1.000 Entries by Phone) | History Call Lists : Yes (Missed, Dialled, Received Calls) ||
- GENERAL || Installation : Din Size Chassis 10.1-Inch Tablet Type | Operating Voltage : 10.8 - 16V | Weight : ca 1.20 (Kg) 2.21 lbs. | Height : 130 (mm) | 5.12 in. | Width : 230 (mm) | 9.06 in. | Depth (Incl.panel connector) : 115 (mm) | 4.53 in. | Depth (Installation Depth) : 105 (mm) | 4.13 in. | Front Panel : Fixed | Colour : Black Piano | Illumination : Press Key : 7 Color Selectable
"HIGHLIGHTS || RADIO : High-End Tuner | FM (RDS), AM Tuner || NAVIGATION : Prepared for Navigation Built-in GPS || DISPLAY : Extra Large 10.1"" QLED 2.5D Touch Screen Panel (1280 x 720 pixels) || CARPLAY / ANDROID AUTO : Wireless / Wired Connection || DATA CARRIER : 2x Rear USB (Standard A-Type) || MEDIA PLAYER : Audio and Video from USB || BLUETOOTH : Built-in Bluetooth for hands-free calling | phonebook upload and audio streaming || INPUTS / OUTPUTS : Front A/V input | Rear view camera input | Steering Wheel Control Input || EQUALIZER / AMPLIFIER : DSP with 32 band EQ | 4.1 Channel Pre-Outs | SubPreout | 4x45 Watt Max. Power || WiFi / INTERNET ACCESS : WiFi Built-in || CPU : Operating System : Android 10.0 | CPU Processor : A53 Quad-Core 2.0GHz | RAM/ROM : 2G 32G || RADIO : Type of Tuner : Blaupunkt Reveiver | World Tuner (Switchable) - | Wave bands : FM 1,2,3, AM 1,2 | Radio Data System (RDS) : AF,CT,EON, PS, PTY, TA, TP, RT | Travelstore : - | Band Scan : Yes | Search via frequency : Yes | Station Memory : 30 | Sensitivity : lo/dx | Frequency Response (Hz)-3dB : 30-15.000 || DISPLAY : Technology : Digital | Type : QLED | Screen Size : 10.1-inch | Resolution 1280 x 720 pixels | Touchscreen : Yes - 2.5D Touch Panel | Brightness Adjustment : - | Display switch Off : - | Clock Display : 24/12 Hours | Date Display : Yes | Radio System Languages : English, Spanish, Portuguese || NAVIGATION : Navi-ready : GPS Built-In || ANDROID SMARTPHONE CONNECTION : Type : USB and Wireless (Android Auto) || OIS (APPLE) SMARTPHONE CONNECTION : Type : USB and Wireless (CarPlay) || DATA CARRIER : Frequency response (Hz)-3dB : 20-20.000 | USB-removable storage : USB 2.0 compatible | Formatting USB : FAT 16, FAT 32, NTFS || MEDIA PLAYER : Video Playback formats : AVI, MP4, WMV, MKV | Picture Playback formats : JPEG, JPG, BMP, PNG | Audio formats USB : MP3, WMA, WAV | MP3 Title Display : ID3-tag (version 1 and 2), file/folder names | MP3 Folder/File Browsing : Yes (w/o track interruption) | Mix : Yes (all, folder) | Reapeat : Yes (all, folder, track) | Fast Forward/Fast Rewind : Yes (via progress bar) | Number of Files : Up to 10.000 | Bit Rate MP3 : 32-320 kBit/s | Bit Rate WMA : 32-192 kBit/s | Variable Bit Rates : Yes || BLUETOOTH : Supported Version : Bluetooth 4.1 | Supported Profiles : HFP, PBAP, A2DP | Audio Streaming : Yes | Pairing (number of devices) : 5 | Pairing Code : 0000 (default, changeable) | Hands-free Calling : Via Mic Radio Speakers | Microphone : 2 (Built-In External Rear Input) | Key Functions : Accept / Hang Up / Reject Call | Phonebook Access : Yes (Up to 1.000 Entries by Phone) | History Call Lists : Yes (Missed, Dialled, Received Calls) GENERAL || Installation : Din Size Chassis 10.1-Inch Tablet Type | Operating Voltage : 10.8 - 16V | Weight : ca 1.20 (Kg) 2.21 lbs. | Height : 130 (mm) | 5.12 in. | Width : 230 (mm) | 9.06 in. | Depth (Incl.panel connector) : 115 (mm) | 4.53 in. | Depth (Installation Depth) : 105 (mm) | 4.13 in. | Front Panel : Fixed | Colour : Black Piano | Illumination : Press Key : 7 Color Selectable "
