- Automatic lubricator controls and dispenses grease with an adjustable dispense rate from 1 to 12 months
- Transparent lubricant container allows visual inspection of dispense rate
- SKF DialSet helps to calculate the correct rate
- Compact size allows for installation in restrictive areas
- Holds 125 ml (4.2 fl. oz) of lubricant

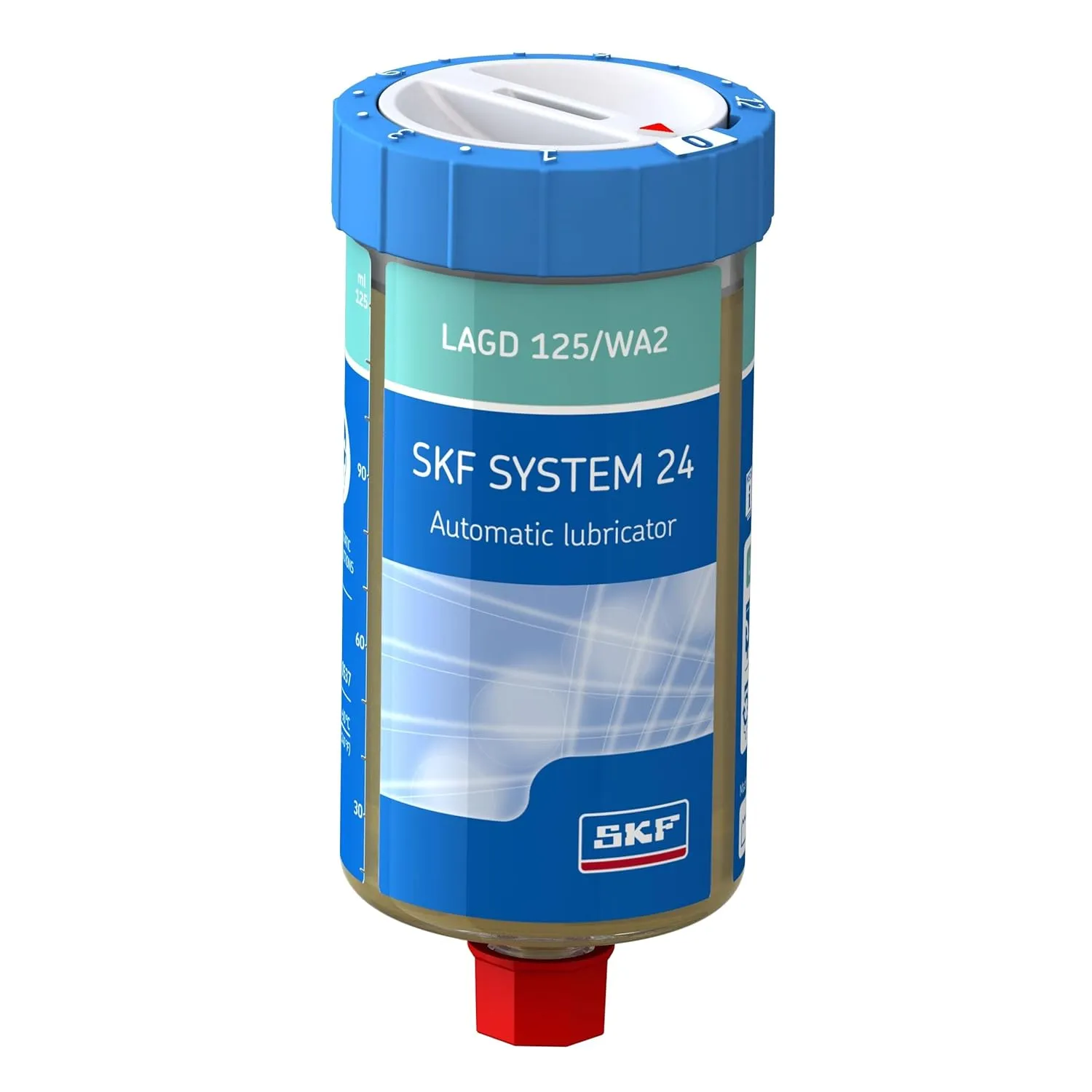

This SKF LAGD 125/WA2 automatic grease lubricator controls and dispenses grease or oil using a gas cell that produces inert gas, and it has an adjustable dispense rate from 1 to 12 months. The transparent container allows visual inspection of the lubricant, and the SKF DialSet helps to calculate the correct dispense rate. Its compact size allows for installation in restrictive areas, and the unit holds 125 ml (4.2 fl. oz) of lubricant. This automatic grease lubricator is suitable for use with bearing housings, electric motors, fans and pumps, conveyors, elevators and escalators, among others.
Specifications
Nominal emptying timeAdjustable; 1–12 monthsAmbient temperature range-5 to 140 degrees F (-20 to 60 degrees C) Maximum operating pressure5 bar (75 psi) (at start-up)Drive mechanismGas cell producing inert gasConnection threadR 1/4Maximum feed line length Grease 11.8"/300mm, Oil 59.1"/1,500mmIntrinsically safe approvalII 1 G Ex ia IIC T6 Ga, II 1 D Ex ia IIIC T85°C Da, I M1 Ex ia I MaDegree of protectionIP68SKF manufactures bearings, seals, and lubrication systems for automotive, energy, and other industrial applications. The company, founded in 1907 and headquartered in Gothenburg, Sweden, meets International Organization for Standardization (ISO) standards 9001 and 14001 and ISO/TS 16949.
- Is Discontinued By Manufacturer : No
- Date First Available : July 15, 2012
- Manufacturer : SKF
