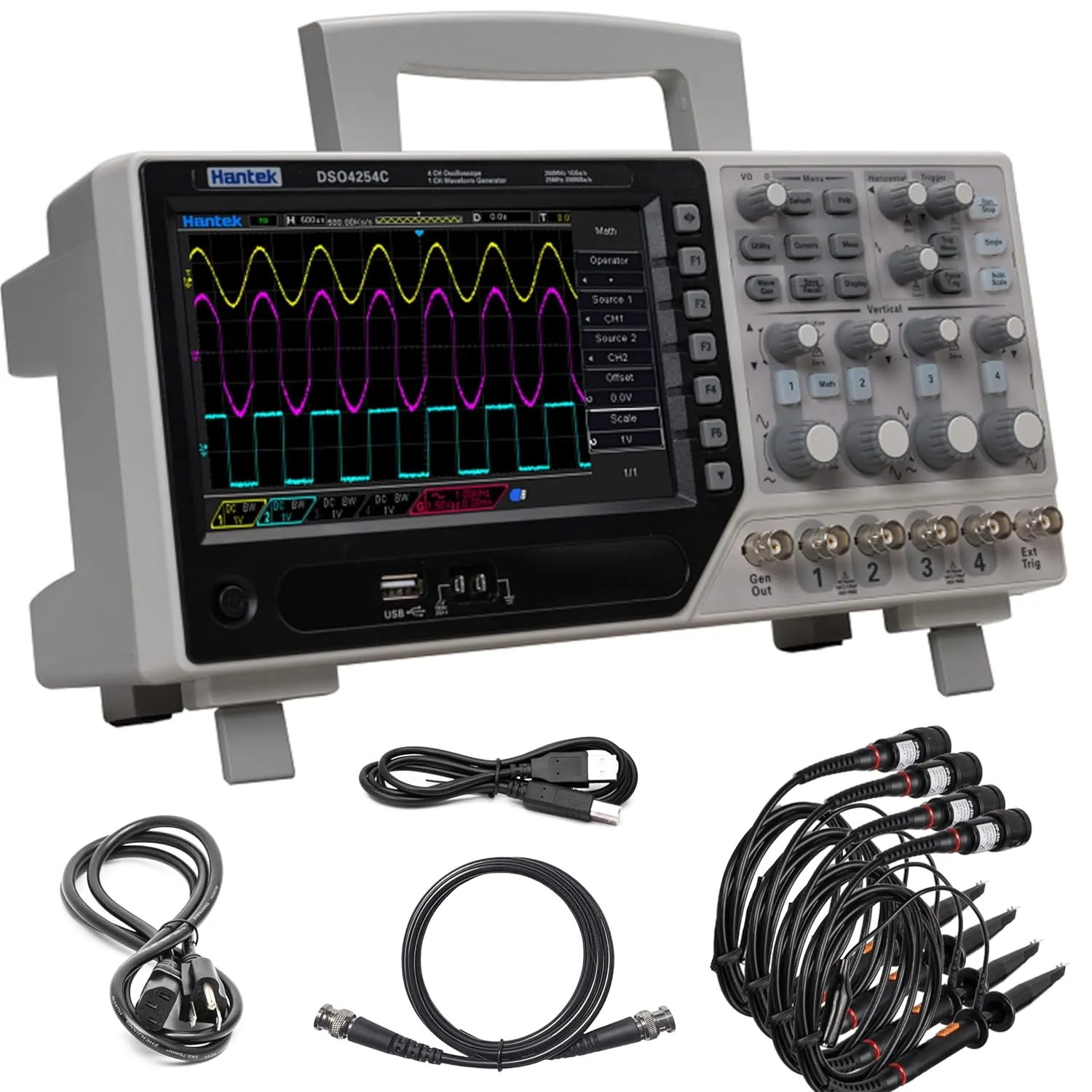

- Hardware Configuration and Ease of Use: The device combines a 4 - channel oscilloscope with a 1 - channel Arbitrary/Function waveform generator. The oscilloscope and waveform generator have independent keys, allowing users to operate them simultaneously with ease. This design offers convenience for various measurement and signal generation tasks.
- Oscilloscope Technical Specifications: It has a bandwidth of 250MHz, which enables the accurate measurement of high - frequency signals. The minimum measurement range is 500μV/div, providing high - sensitivity voltage measurement. With a sample rate of 1GS/s, it can precisely capture fast - changing signals. Equipped with an advanced digital trigger system, it features high trigger sensitivity and low trigger jitter. There are over 14 types of trigger functions, including edge, overtime, pulse, pattern, and interval. Additionally, it supports serial bus triggering and decoding, presenting bus protocol information in a quick and intuitive table format.
- The high - resolution 7 - inch 64K color TFT display with a resolution of 800×480 offers clear visualization of waveforms. It also has over 32 types of auto - measurement functions, simplifying the analysis of signals.
- Function/Arbitrary Signal Generator Features:The function/arbitrary signal generator has a frequency of 25MHz and a 12 - bit resolution. With a 200MHz DDS (Direct Digital Synthesis), it can generate a wide variety of waveforms such as ARB, square wave, sine wave, triangular wave, trapezoidal wave, impulse wave, and DC. This makes it easy to simulate different sensor signals, which is useful in many applications.
- Communication and Connectivity Options: Integrated with USB Host/Device interfaces, it allows for convenient communication with a PC. This enables data transfer, remote control, and software - based analysis. It supports U - stick storage for saving measurement data and system updates, ensuring the device can be kept up - to - date. It also supports a variety of SCPI (Standard Commands for Programmable Instruments) remote - control commands.
- The device is known for its stable and reliable quality. Its sturdy and durable construction ensures that it can withstand the rigors of regular use in various environments, whether in a laboratory or industrial setting.
