- 16in/16out AD/DA converter with Dante, MADI and ADAT
- Sophisticated routing matrix
- Huge problem solver for studio/life sound applications
- DX adds 64x64 channels
- Unique size and price range

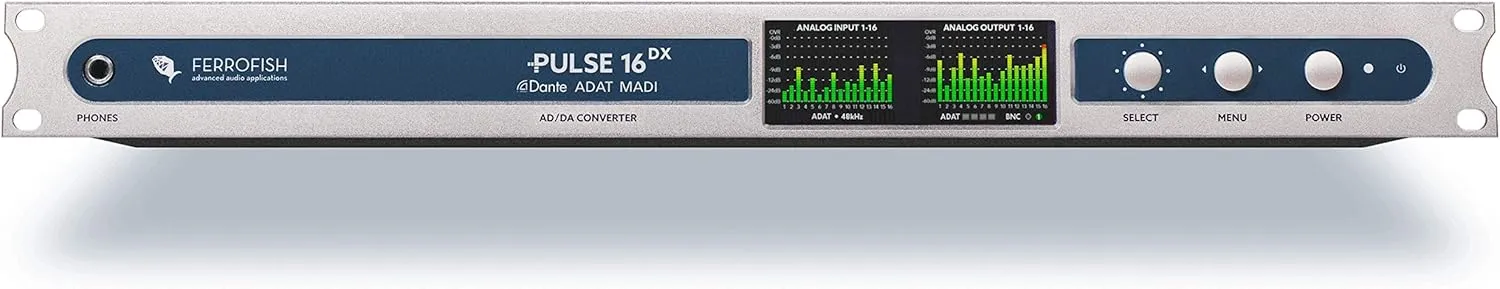

The PULSE16DX is the high-quality solution to connect and route a wide range of Analog, MADI, ADAT and Dante equipment – with up to 192 kHz.
The high-density converter provides 16 x 16 balanced analoge TRS-I/Os. Combined with a temperature-compensated high-precision clock and an active jitter reduction hardware design, the 354-channel DX delivers an exceptional detailed sound.
On the digital side, the multi-format device provides an optical MADI I/O with 64 I/Os. 2 x 4 ADAT ports can convert all 16 analog I/Os – even with up to 96 kHz.
On top of it, the DX adds 64 x 64 channels of Dante/AES67 to an already impressive array of various I/Os – unique in this size and price range.
The Pulse16DX incorporates a Word Clock I/O and a MIDI I/O for embedding signals and remote control of the unit. Many popular features from the flagship A32 have been added as well: Preset Management, Panel Lock and the sophisticated routing matrix.
All in all the fan-less, small footprint device is a huge problem solver for studio and live sound applications.
