- [MULTIPLE BEAM OPTIONS] Choose from 4, 6, 8, 10, or 12 beams to suit your specific automation needs. This flexibility allows for precise area protection tailored to your equipment and workspace.
- [ROBUST CONSTRUCTION] Made from aluminum alloy, this safety light curtain is designed to withstand harsh industrial environments while providing reliable performance.
- [EFFECTIVE DETECTION RANGE] With a detection distance of 3 to 2 meters and an effective protection height ranging from 120mm to 440mm, it ensures comprehensive coverage for various applications.
- [COMPREHENSIVE PACKAGE CONTENTS] Each purchase includes two yellow light gratings, two black connecting cables, a screw kit, and an English user manual for straightforward installation.
Features:
* Five styles for you to choose from.
* Suitable for forging machine tools, automation equipment, shears, hydraulic presses, robots, industrial robots and other automation equipment.
* Strong resistance and anti-interference ability.
* This grating can be used for multi-area protection, etc.
Specification:
Part name: Safety light curtain grating
Material: aluminum alloy
Color: yellow
Output mode: NPN/
Working input voltage: 10-30VDC
Light curtain type: upper type
A series: relay wiring
Number of beams: 4 beams/6 beams/8 beams/10 beams/12 beams (corresponding model selection)
Optical AX ISspacing: 40mm
Effective protection height: 120/200/280/360/440mm (corresponding models available)
Detection distance: 0.3-2 meters
Length of each cable: 2.15 meters (2 pieces)
Response time: ≤10ms
Protection level: IP-65
Insulation resistance: greater than 10MΩ

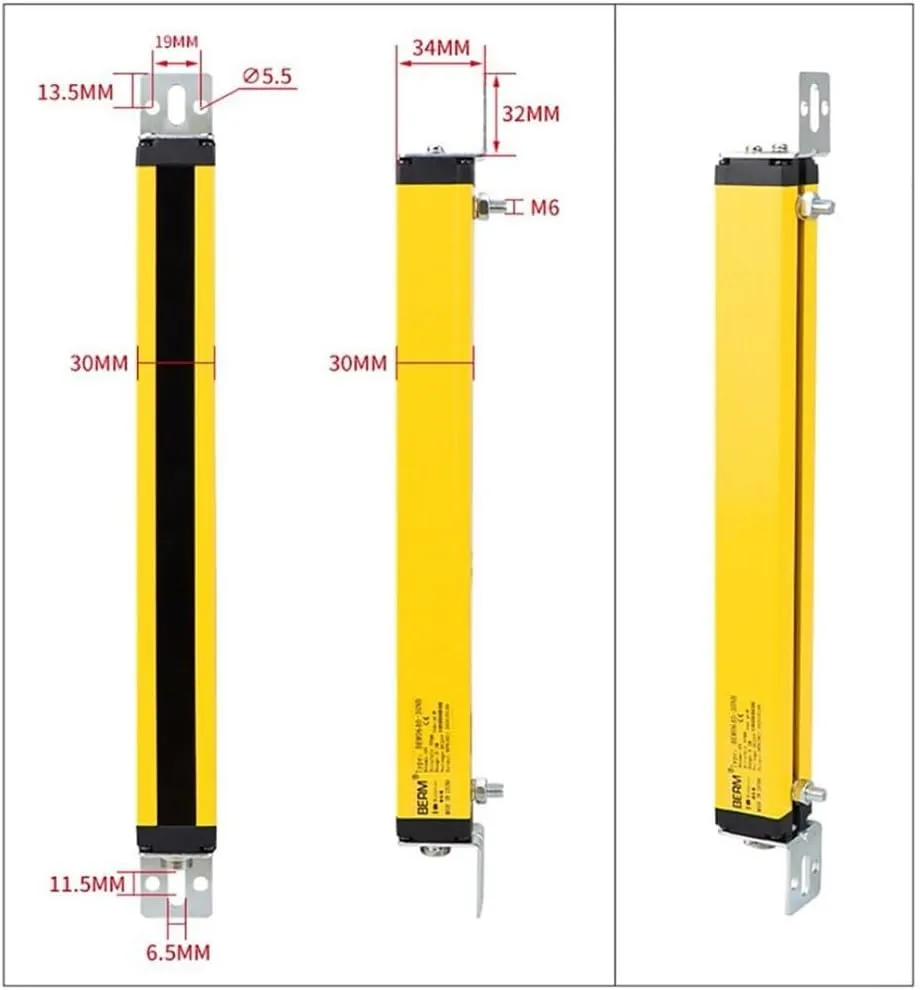

Size (optional): approx. 195 x 29.8 x 18.5 mm/7.7 x 1.2 x 0.7 inches,
275 x 29.8 x 18.5 mm / 10.8 x 1.2 x 0.7 inches,
355 x 29.8 x 18.5 mm/14 x 1.2 x 0.7 inches,
435x 29.8 x 18.5 mm / 17.1 x 1.2 x 0.7 inches,
515 x 29.8 x 18.5 mm / 20.3 x 1.2 x 0.7 inches
Style (optional): 4-beam BEM0440-C-120NB, 6-beam BEM0640-C-200NB, 8-beam BEM0840-C-280NB, 10-beam BEM1040-C-360NB, 12-beam BEM1240-C-440NB

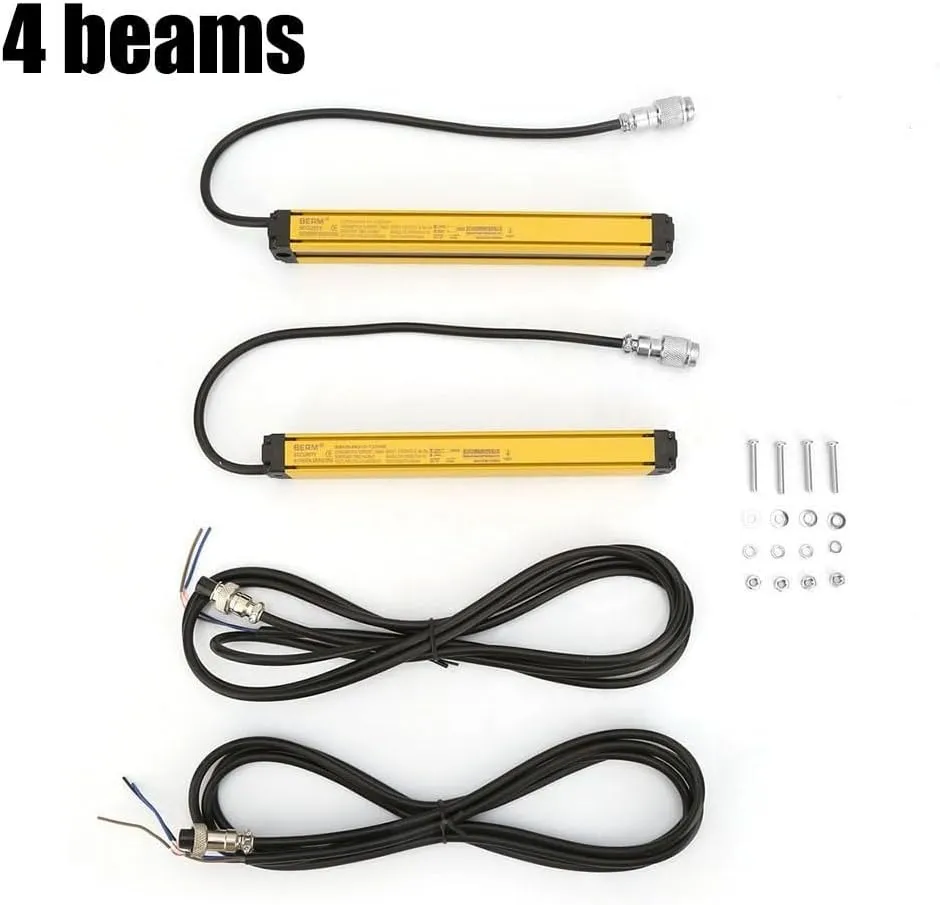

Package Contents:
2 x Yellow Light Grating
2 x black connecting cable
1 x screw kit
1 x English user manual
