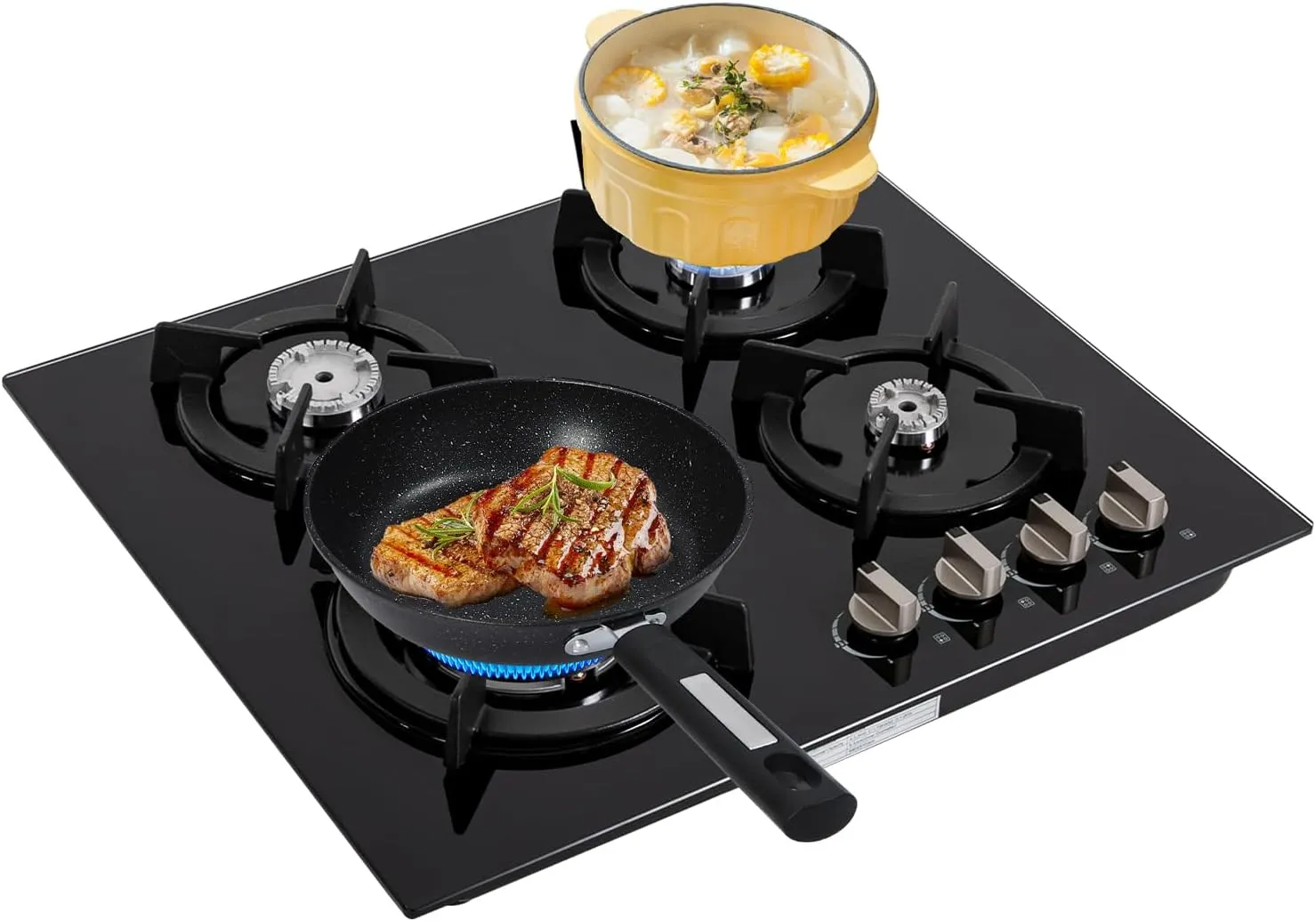

- High Precision Fire Control: The gas cooktop has a 3.2KW and a 1.0KW burner, as well as two 1.75KW burners, and has independent control knobs that allow you to adjust between high and low heat.
- Efficient Cooking: Four independent burners have strong firepower and can cook multiple dishes simultaneously, greatly improving cooking efficiency.
- Quick Start: The 4 burner gas stove uses electronic pulse ignition, and you only need to press and rotate the knob switch to quickly complete the ignition.
- Excellent Load-Bearing Capacity: The thickened tempered glass (8mm) and cast iron pot brackets give this gas stove top a maximum load-bearing capacity of 44.09 pounds, ensuring stability even under high-intensity cooking.
- High Adaptability: The 0.37-inch gas interface and equipped nozzles enable it to use fuels including NG and LPG, allowing you to use it with confidence.
Details
Burnercaps: Covering them on the burners can prevent excessive release of gas and backfire, ensuring safe use.
Clear Illustrations: They allow you to intuitively know the location of the ignition.
Application
This product can be widely used in home kitchens, restaurants, hotels, homestays, schools, canteens, and other places.
Specification
Model: QB4Z55TCW
Material: Tempered Glass, Aluminum Alloy, Cast Iron
Process: Baking Paint, Enamel Coating
Color: Black
Style: Modern
Assembly Required: Yes
Mount Type: Built-in/Countertop
Ignition Type: Electronic Pulse Ignition
Battery Type: 1 X R20S D-size 1.5V Battery (Not Included)
Firepower Gear: Small-Large
Air Intake Method: Upward
Gas Type: NG/LPG
Number of Burners: 4
Rated Working Pressure: 2000Pa/2800Pa
Rated Combustion Power: A: 3.2KW, C: 1.75KW, D: 1.0KW
Heat Flow Rate: 4.5W
Max.Load Capacity: 20kg/44.09lbs
Tempered Glass Thickness: 8mm/0.31in
Gas Interface Inner Diameter: 9.5mm/0.37in
Cabinet Opening Size: 56 X 47cm/22.05 X 18.5in
Product Size: 59 X 51cm/23.23 X 20.08in
Package Size: 64 X 55 X 18.5cm/25.2 X 21.65 X 7.28in
Gross Weight: 7.8kg/17.2lbs
Net Weight: 6kg/13.23lbs
Package Included
1 X 4-Burner Gas Stove
4 X Nozzles
5 X Burnercaps
1 X English Manual
Other Accessories for Assembly
Notes
1. Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
2. The product does not include the battery required for ignition, you need to bring your own R20S D-size 1.5V battery.
3. This product is set to use natural gas at the factory. If you need to use LPG or propane gas, you can simply replace the nozzles in the package to achieve that.
4. This product does not include the gas pipe, please prepare it by yourself.
5. When using bottled LNG or LPG, please use a low-pressure valve (not included) and do not use a high-pressure valve, otherwise there may be danger.
6. Please ensure that the fireproof covers are in the correct position to prevent backfire.
7. Please avoid exposing the product to direct sunlight for a long time.
8. Please do not place freshly heated cookware directly on the tempered glass panel.
9. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
