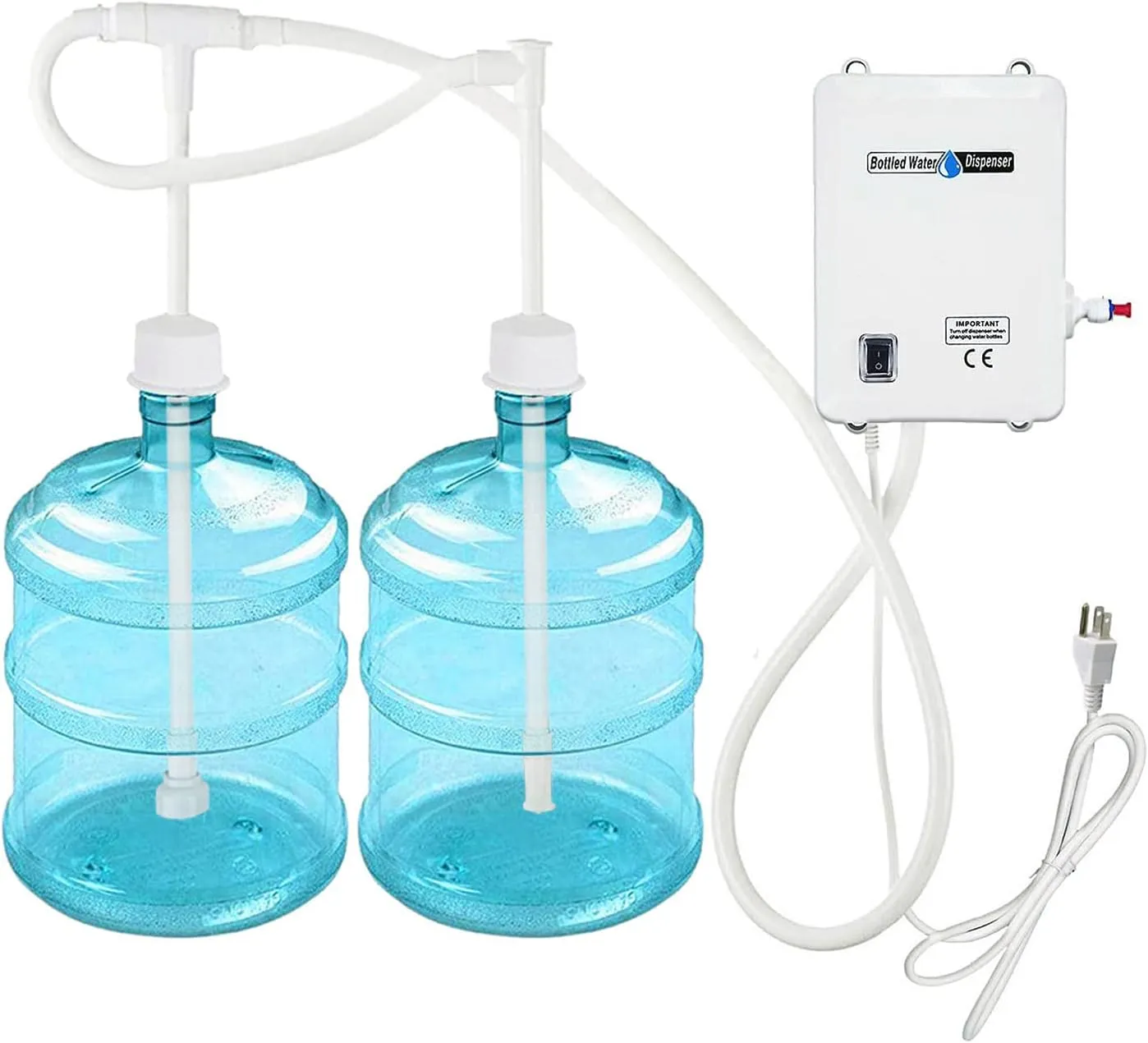

- BOTTLED WATER DISPENSING PUMP SYSTEM (no jugs included): dual adjustable suction wands, 20FT discharge hose of food-grade material, BPA free, compatible for fridge, ice maker, coffee maker, hot and cold water dispenser etc.
- SMART ON-DEMAND WATER DISPENSER: to activate or shut-off the engine via a float sensor switch and deliver water under pressure 40 PSI automatically on demand, with over-heating protection
- QUICK FLOW WITH DUAL INLET: 1 gallon/min, less water bottle changes, fit for residential or commercial appliances
- LESS NOISE: recommended to fix the pump body inside a closet or on wall with provided silicone screws to minimize the vibration and keep the running noise less than 60dB (normally runs a few seconds intermittently) when priming
- QUALIFIED AND RELIABLE: 100% new dispenser pump tested before delivery (normal with water residuals inside), with 1 Year warranty guarantee and considerate customer service to reply your inquiry within 24H
SPECIFICATIONS:
- Input: AC100-130V,50-60Hz
- Output: DC12V
- Max Current: 1.2A
- PSI Cut-off: 60 PSI
- Dimension: 9x4.6x3 In
PACKAGE INCLUDES:
- 1 x Pump Module with a Rocker Switch
- 1 x 5 Feet Power Cord with a US Plug
- 1 x 20 Feet PPR Discharge Hose/ Tube (Diam:6.35mm /0.25 Inch)
- 1 x 48-Inch Suction Hose and adjustable 22.2-Inch Dual Suction Wands with 55mm Seal Caps)
- 4 x Silicone Screws (for mounting) to minimize the vibration or noise
- 1 x Optional Fitting for Refrigerators or Faucet etc. (a Compression Nut and a Sleeve/Ferrule)
- 1 x Installation and Maintenance Instructions
TIPS FOR USERS:
- Pls. read the Instructions and Clean the Pump system (P4-5 of Instructions) before installation. All pumps are tested before delivery. There may be water residual left inside.
- Pls. be sure to remove the Inlet Pressure/ Flow Restrictor or any Filtrator of Commercial Brewers or Refrigerators before Plumbing which may cause the pump's Over-cycling malfunction (P3).
- For Air-in-Pump which may also lead to Over-cycling without water suction (P6): After the Plumbing and turning the Pump on, pls. open the Dispensing Valve of Appliances or Faucets to vent the airtill a constant water flow. For Refrigerators with Ice Makers, the Seal at the connection needs to be loosened or disconnected.
